WSR 510
Click to send Inquiry
Ojays Communi & Server Racks
Wall Mount Rack

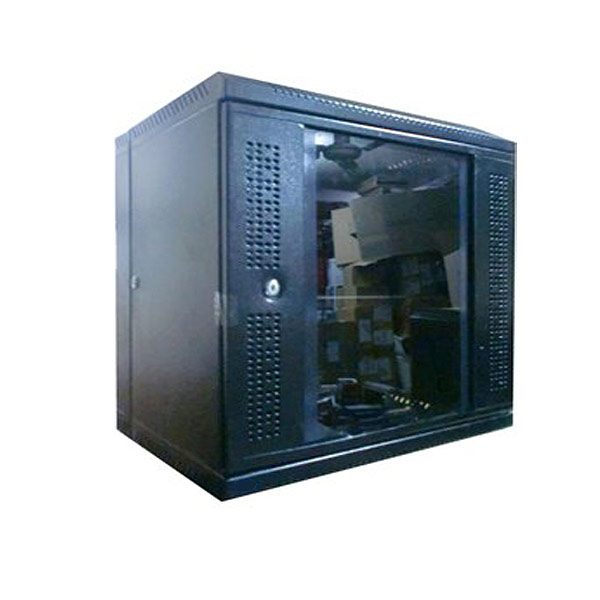

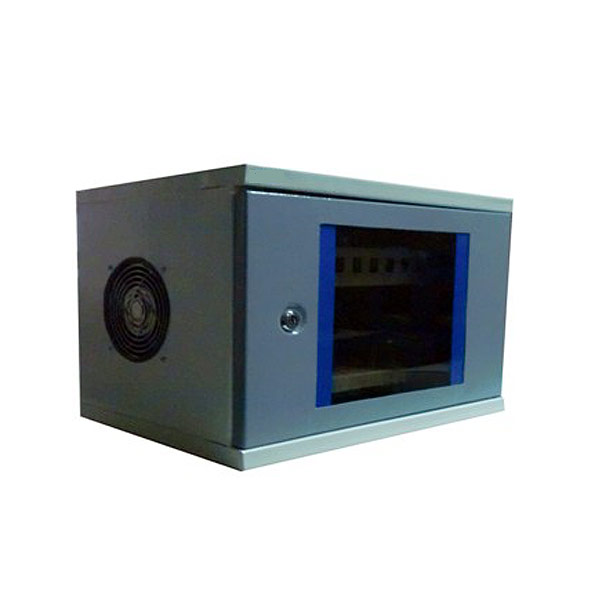

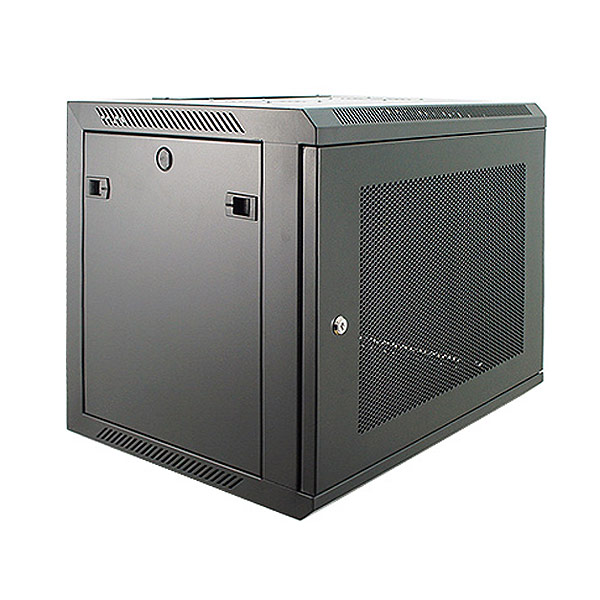

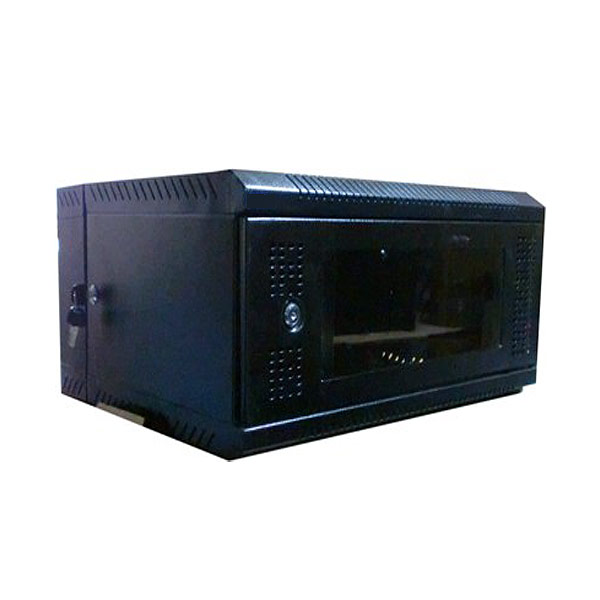

Wall Mount Communication Cabinet

OJnet 510



The OJnet range has been designed to exceed the requirements of the networking installer and hence the cabling market. The OJnet 510 wall mounted cabling enclosure complements the large OJnet rack in providing total all-round cable access, as well as flexibility in panel mounting widths and easy baying, for an infi nitely expandable installation.



Ventilation options, cable management, and reversible lockable glass or steel doors give network installers confidence that the enclosure environment is totally appropriate for optimum network performance.

Product features:

  • 7 heights (2, 4, 6, 9, 12, 15 and 18U).
  • 2 depths (400 and 500mm) Excluding 100mm Back panel.
  • 19", ETSI or metric panel mounting.

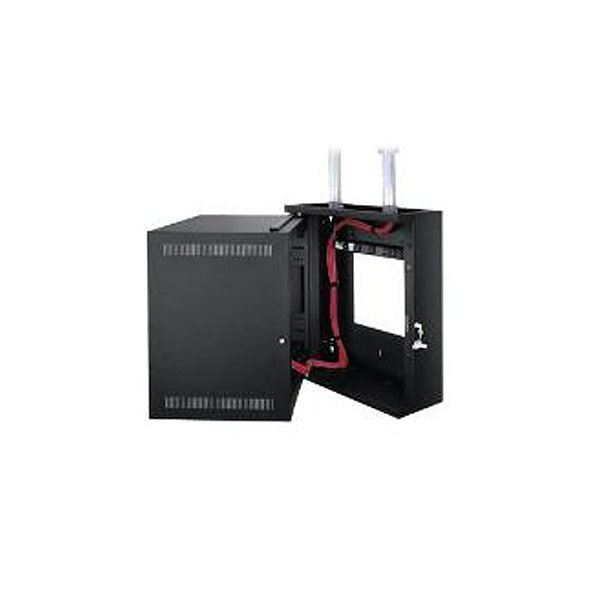

  • Access for easy cable installation - Cables can be laid, not pulled through
  • Top and base gland plates provide cable access.
  • Steel or glass lockable door with quick release reverse facility.
  • 20kg load rating.
  • Pre-punched Wholes patterns in top and base provide ventilation options
  • Cable-friendly design.

Full range of cable management accessories available



Accessories:

  • 19 “ cantilever shelves.
  • Earthing kit.
  • Fan with mounting Tray .
  • Power strip 4-way.
  • Horizontal Cable Managers

      Cage Nuts.



EXTERNAL RACKS SIZES 600 x 500 mm

   Product

Height

Width

Front Sec..
Depth

Rear Sec..
Depth

   2U (Single Section)

7 inch

25 inch

15 inch

---

   4U (Double Section)

11 inch

25 inch

15.5 inch

4 inch

   6U (Double Section)

14 inch

25 inch

15.5 inch

4 inch

   9U (Double Section)

20 inch

25 inch

15.5 inch

4 inch

   12 U(Double Section

25 inch

25 inch

15.5 inch

4 inch

   15 U(Double Section

30 inch

25 inch

15.5 inch

4 inch

   18 U(Double Section

35 inch

25 inch

15.5 inch

4 inch



EXTERNAL RACKS SIZES 600 x 600 mm

   Product

Height

Width

Front Sec..
Depth

Rear Sec..
Depth

   4U (Double Section)

11 inch

25 inch

19.5 inch

4 inch

   6U (Double Section)

14 inch

25 inch

19.5 inch

4 inch

   9U (Double Section)

20 inch

25 inch

19.5 inch

4 inch

   12U (Double Section)

25 inch

25 inch

19.5 inch

4 inch

   15 U(Double Section

30 inch

25 inch

19.5 inch

4 inch

   18 U(Double Section

35 inch

25 inch

19.5 inch

4 inch



We are also made customized designed & sizes on customer
requirement, Please Contact Us
