FSR 1000
Click to send Inquiry
Ojays Communi & Server Racks
Ojays Floor Standing Racks

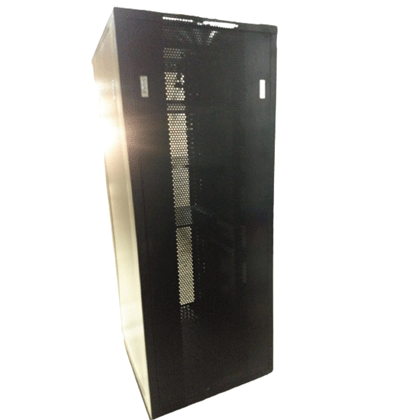

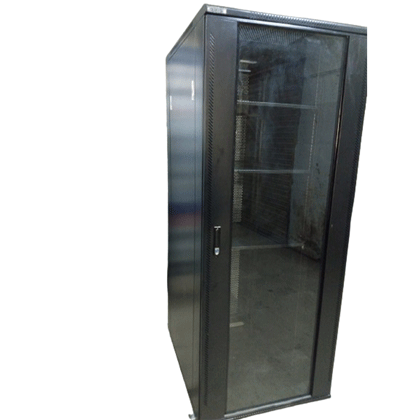

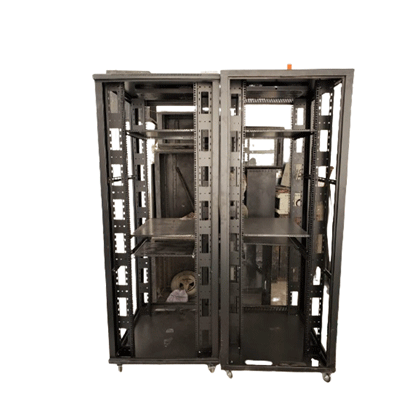

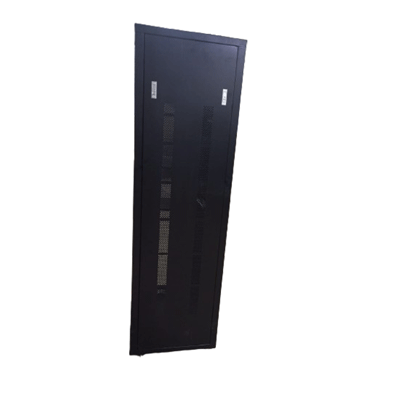

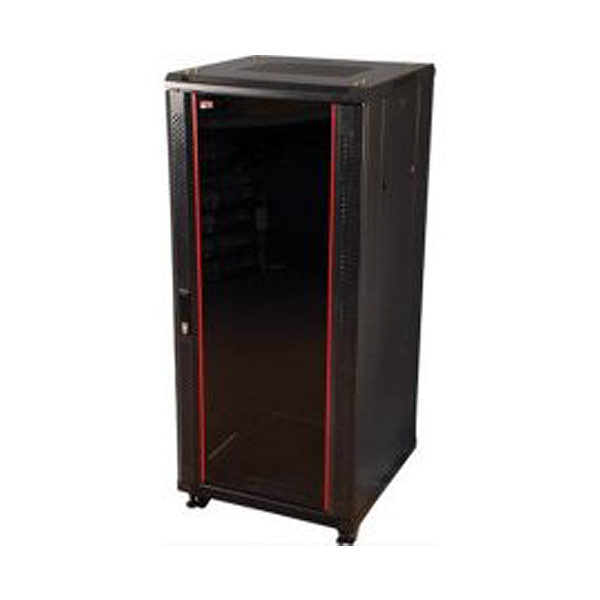

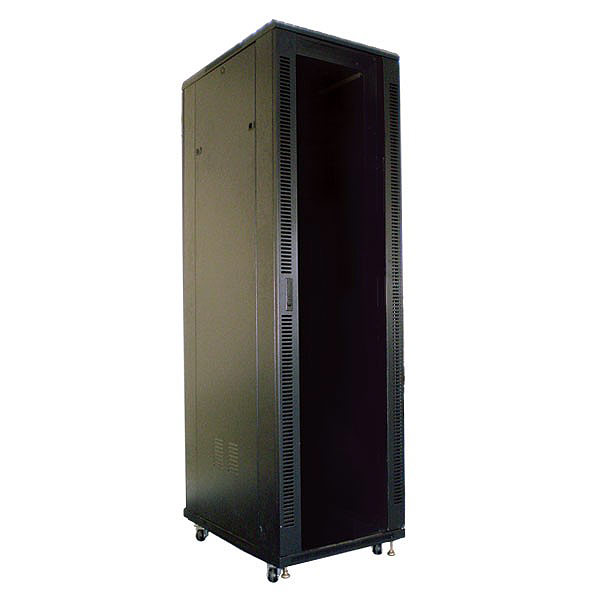

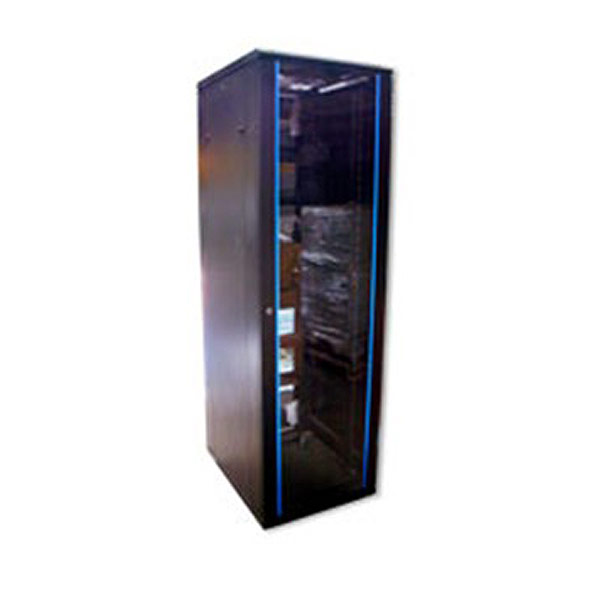

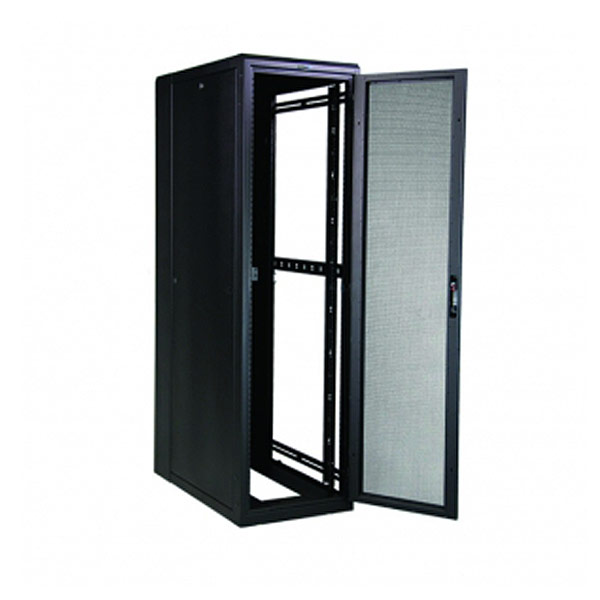

Floor Standing Communication Rack

OJRAK 1000

is a versatile 19" racking system. The cabinet's very strong in 18AWG Frame & 20AWG Doors yet lightweight frame can be configured to meet the special racking requirements of today's electronic data communication and audio/visual broadcast industries.

Product features:

  • Supplied fully assembled and configured with accessories
  • Glass or metal front door options
  • 5 height options –22U, 27U, 37U, 42U and 47U
  • 2 depth options – 600mm and 800mm
  • 2 widths option – 600mm and 800mm
  • Cable entry provided in top or bottom using access panels
  • Cable entry provided in base of all products
  • Adjustable 19” panel mounts as standard
  • Lockable front door option
  • Removable side for enhanced access
  • Various ventilated top cover and base options
  • Load rating 150kg

Wide range of OJ RAK accessories available





Accessories:

  • Fix shelves.
  • Sliding Shelves.
  • Earthing kit.
  • Fan with mounting Tray.
  • Power strip 4-way.
  • Horizontal Cable Managers

      Cage Nuts.

EXTERNAL RACKS SIZE

   Product Description

Height

Width

Depth

   22U Rack 600x600mm

45 inch

24 inch

24 inch

   22U Rack 600x800mm

45 inch

24 inch

31 inch

   22U Rack 800x800mm(CM)

45 inch

31 inch

31 inch

   22U Rack 800x600mm(CM)

45 inch

31 inch

24 inch



   27U Rack 600x600mm

53 inch

24 inch

24 inch

   27U Rack 600x800mm

53 inch

24 inch

31 inch

   27U Rack 800x800mm(CM)

53 inch

31 inch

31 inch

   27U Rack 800x600mm(CM)

53 inch

31 inch

24 inch



   37U Rack 600x600mm

72 inch

24 inch

24 inch

   37U Rack 600x800mm

72 inch

24 inch

31 inch

   37U Rack 800x800mm(CM)

72 inch

31 inch

31 inch

   37U Rack 800x600mm(CM)

72 inch

31 inch

24 inch



   42U Rack 600x600mm

80 inch

24 inch

24 inch

   42U Rack 600x800mm

80 inch

24 inch

31 inch

   42U Rack 800x800mm(CM)

80 inch

31 inch

31 inch

   42U Rack 800x600mm(CM)

80 inch

31 inch

24 inch



   47U Rack 600x600mm

90 inch

24 inch

24 inch

   47U Rack 600x800mm

90 inch

24 inch

31 inch

   47U Rack 800x800mm(CM)

90 inch

31 inch

31 inch

   47U Rack 800x600mm(CM)

90 inch

31 inch

24 inch
